DIY Upholstered Headboard with Wood Frame

Create your own luxurious DIY upholstered headboard with a wood frame! This easy tutorial will show you how to make it yourself with standard lumber. Get the free woodworking plans and start building!

DIY upholstered headboard with wood frame

After completing the textured wallpaper accent wall in our master bedroom, we desperately needed a headboard to protect it. The raised pattern of the wallpaper could easily be crushed or scratched, and it also needed something to break up the giant wall of squares and rectangles.

patterned wallpaper in varying shapes and shades of beige

Luckily, the good people at Leather Hide Store offered me a scrumptious piece of leather to use in one of my DIY projects. The timing could not have been more perfect! A gorgeous upholstered headboard is just what I needed for our master bedroom makeover!

Not quite the headboard you were looking for? Check out these other DIY headboard ideas for more inspiration!

This post is sponsored by Leather Hide Store and contains affiliate links for your convenience. Purchases made through these links may earn me a small commission at no additional cost to you. You can read more about how this site earns money on my disclosures page.

Materials needed

How to make an upholstered headboard

Download the free woodworking plans

It was a little difficult to get photos of the building process when the headboard is this big! The woodworking plans include 3D models of each step, so hopefully it's more clear and easier to follow along.

Cut the fabric

Leather is a little harder to work with than fabric, because it comes in an organic shape instead of a standard rectangle. I needed a piece that was at least four feet by two feet, so I looked at the grids for various  leather remnants to find the right one for my project.

gray leather with grid

Lay out your fabric or leather on a flat surface, then mark out the shape of the headboard with a chalk wheel. If your fabric has a pattern, make sure it doesn't get cut off awkwardly around the outside edge. I cut out a 27" x 54" rectangle for my queen size headboard.

marking leather with a chalk wheel for cutting the leather

With the leather cut, I could now use those dimensions to design the frame of the headboard. I wanted to mimic the effect of the wallpaper blocks, so I put together a stacked wood frame with staggered corners.

Build the Headboard Frame

Make sure all your boards are sanded down before assembly. I started with 80 grit sandpaper, then 150, and finished with 220 for a super smooth surface.

Start with the 2 x 2 boards. Decide which sides you want to face outward, and drill pocket holes into one end of each of the short pieces on the back side.

2 - 2x2 boards with 2 pocket holes drilled in them

Place those boards, pocket hole side down, next to each other on the worktable. Now mark along the length every 8-10 inches at the bottom of the sides facing each other. Drill countersink holes at those marks.

Your short 2 x 2s should end up looking like this.

image showing placement of countersink headboard holes and where pocket holes line up

Repeat the pocket holes along the side of the longer 2 x 2, then assemble those pieces into a U shape. The countersink holes along the sides should be facing inward.

assembling frame of upholstered headboard with speed square

Place your 2 x 2 U shape on top of the edges of the plywood. It should fit perfectly along the edge.

Next, set the 2 x 3 boards around the edge of the plywood, on the worktable. Clamp the 2 x 2s and 2 x 3s together. The plywood is just being used as a spacer right now, and doesn't need to be clamped. A picture is worth a thousand words, so hopefully this will help!

upholstered headboard frame on plywood backing

Using 2 ½" pocket hole screws, attach the 2 x 2 U shape to the 2 x 3s through the countersink holes. The heads should go below the surface of the wood, and they'll be covered up in the next step.

assembled frame of upholstered headboard

If this sounds confusing, the woodworking plans should make it much clearer. It's hard to explain, and even harder to show on this huge piece!

Attach the frame to the plywood back

Remove the newly formed double U from the plywood. Drill pocket holes in the plywood every 8-10 inches along three sides, towards the outside edge.

drilling pocket holes along outside edge of plywood backing

Lay your double U frame upside down on a flat surface, and fit the plywood into the back. Clamp the plywood in place, then screw in 1" pocket hole screws.

attach plywood back to headboard frame with pocket hole screws

Flip the entire headboard over, and place your 1 x 4 pieces on the inside of the frame. Mark the inner edge of the 1 x 4s on the plywood with a pencil. These marks will indicate where to put your foam later on.

Marking position of 1x4 frame on plywood back of headboard

You should have a strip of plywood left over from the back piece. Cut it to fit the bottom of the headboard below the 1x4 frame. This piece will be hidden behind the mattress, and it will cover up the staples and protect your sheets from getting snagged.

If you are planning on painting or staining your headboard, now would be a good time to do it. Remove the 1 x 4's and the plywood strip, and stain those separately. Don't bother with the plywood backing because it will be covered up.

I used Varathane's Stain + Poly in Kona. Typically, I don't like working with stains that have polyurethane or polycrylic already added, because it's hard to build up multiple coats. But it worked out ok for this project, because it won't get a lot of wear and tear. I really should have used wood conditioner, though, to prevent blotchiness.

Upholster the center panel

Spray the back of the foam padding with the spray adhesive and place it along your pencil markings. You may also want to add some batting to give it a bit more cushion and fill out some wrinkles in the fabric.

Drape the leather over the foam, making sure it overlaps evenly on all sides. Staple the leather to the plywood backing as close to the foam as you can get. If the staples won't sit flush with the surface of the plywood, use a hammer to flatten them.

stapling the upholstery foam and leather to the headboard backing

Fit the 1 x 4 boards between the frame and the leather. The boards should cover up the edges of the leather and the staples.

Attach the 1 x 4's to the plywood with 1" nails. Use the long strip of plywood to cover up the bottom edge. I used my Ryobi Airstrike brad nailer for this step.

attaching the wooden frame to the edge of the upholstered headboard

After nailing the final boards in place, dab a bit of your wood stain into the nail holes. Wipe away the excess on the surface of the boards with a paper towel.

Attach the Headboard to the Wall

Figure out where you want to attach your headboard to the wall, and mark the center. Keep in mind that the plywood at the bottom should rest behind the mattress, so measure the height of your bed!

Attach one side of the French cleat to the wall, making sure to hit at least one stud.

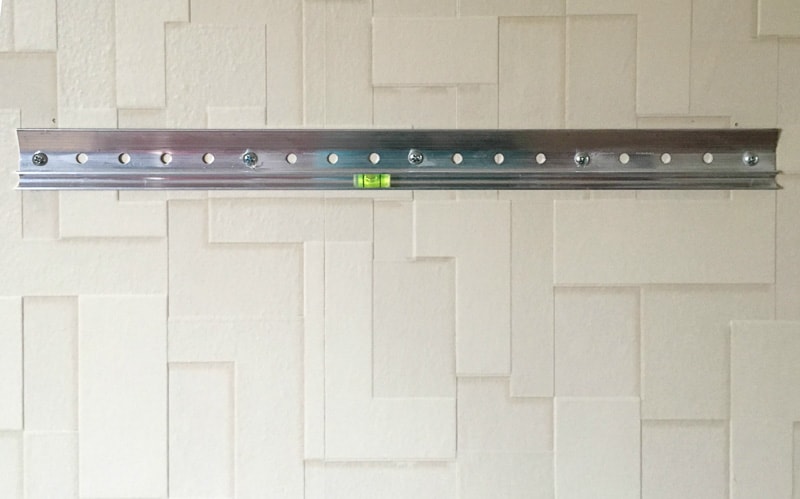

French cleat on wall behind bed for headboard

Attach the other side of the cleat to the back of the headboard, then just hook the two sides of the cleat together! A perfectly flat and level headboard without a ton of measuring!

The leather really pops against the dark trim, and I love the stacked effect of the wood against the three-dimensional wallpaper.

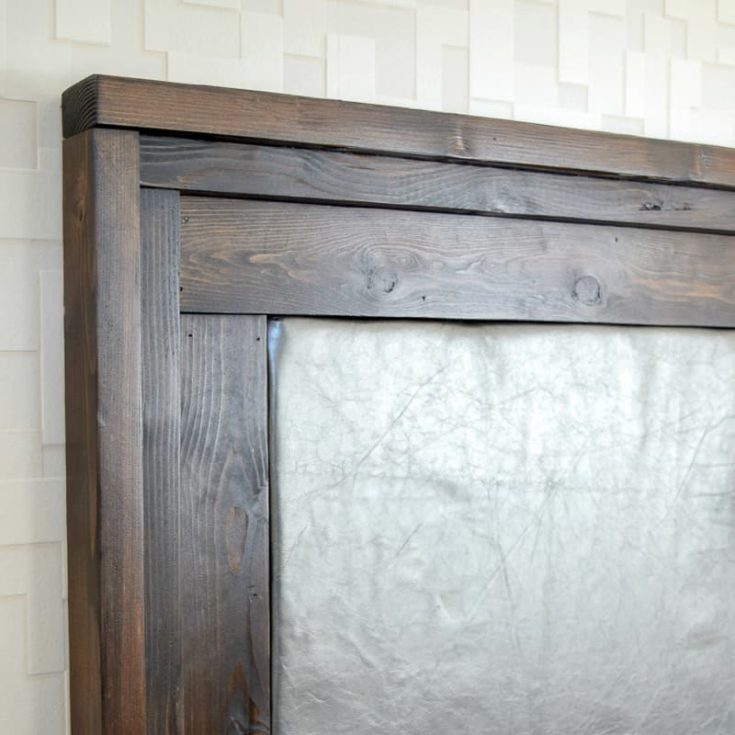

DIY upholstered headboard with dark wood trim

Ready to make your own upholstered headboard with wood frame? Download the plans and get building!

Looking to reupholster an existing furniture piece, but don't know how much fabric or leather you'll need for the job? Leather Hide Store has a handy printable guide to help you figure it out!

Want more DIY leather project ideas? I've put together a list that's sure to inspire you to make something today!

collage of DIY leather projects with text overlay
