Easy DIY 2x4 Bench with Free Plans

This simple DIY 2x4 bench is easy to build yourself with free woodworking plans! Perfect for both outdoor spaces or farmhouse tables!

easy DIY 2x4 bench with free plans

2x4 boards are cheap and easy to work with, but they're usually meant for construction projects. I'll show you how I turned a few wood studs into a 2x4 bench that you can use both indoors and out!

I designed this small farmhouse bench to fit along the dining room wall under the window, where a regular chair would block the view. Since we're a family of three, we don't use that side of the table on a regular basis anyway. The bench slides under the dining table and out of the way, but gives us additional seating when we need it!

DIY 2x4 bench at dining table

This post contains affiliate links for your convenience. Purchases made through these links may earn me a small commission at no additional cost to you. You can read more about how this site earns money on my disclosures page.

This 2x4 bench is such a quick and easy build, you could start this project in the morning and be done in time for dinner. Just wait until the paint dries before you sit on it, ok? 😉

I was able to utilize most of the scraps leftover from my outdoor sofa and loveseat, so this project only cost me about $10 to make! And since it's made of cedar, it can double as an outdoor bench too!

I was inspired by the Providence Bench by Ana White, but shortened it significantly and removed the diagonal cross-braces so it could fit under our small dining table. You can get the free woodworking plans for this DIY farmhouse bench by entering your email address in the box below!

Materials Needed for 2x4 Bench

Don't forget your safety gear when woodworking! Here are my recommendations for safety glasses and ear protection. No excuses!

How to Build a 2x4 Bench

Almost all my cuts were made of 2x4 scrap wood, matching up the longest pieces with the longest measurements required and working down the list. It felt great to whittle down my scrap pile to a manageable level!

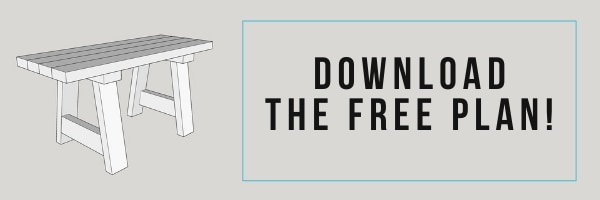

Download the Free Plans

If you're using new boards for your 2x4 bench, I've provided a cut diagram in the woodworking plans to help utilize the wood most efficiently. The plans also show how the angles are supposed to be cut, because it's a lot easier to show in the model than in photos!

Assemble the Legs

I suggest doing a rough fit of the legs to make sure all the angles are correct before starting assembly. There's nothing worse than going back to the store for a 8 foot long board when all you need is a 15 inch piece!

Mark where your pocket holes will be drilled and work on one leg at a time to avoid confusing yourself. In the end, you should have two legs that look like this.

legs for DIY farmhouse bench made with 2x4s

Connect the Legs

Join the legs together with the upper and lower stretchers. Note that the shorter piece runs horizontally across the top and the longer piece is placed vertically at the bottom. (The bench is upside down in this photo.)

legs of 2x4 bench connected with stretchers

Create the Seat

I decided to plank the seat pieces together first, then attach them to the legs as one piece for extra stability. I placed the smoothest edges at the front and back of the bench seat. No one wants little legs to get scratched by a wood knot at dinner!

Drill pocket holes down the long edge of three of the seat boards. Apply wood glue, then join them together with pocket hole screws. Long clamps help hold everything together while you work.

2x4 bench seat boards connected with pocket hole screws and clamps

My 2x4 bench was feeling a little too much like, well...a bunch of 2x4's when it was all put together. Normally I would trim off the rounded corners at the table saw to create squared edges, but it would make the seat too narrow.

So to even out the top, I caulked all the gaps (you can learn more about how to use a caulk gun here). It really helped to make the finished bench seem less like painted lumber! Plus, it prevents all those crumbs from getting stuck in the cracks...

caulk between boards in top of 2x4 bench

Once the caulk is dry, flip the top over so the bottom is facing up. Center the base upside down on top. Screw the base to the underside of the seat with 2 ½" screws.

Fill Pocket Holes (optional)

Some of the pocket holes remain visible after the bench is built. If you want a sleeker look, you can fill them with pocket hole plugs or wood putty. Since my bench is partially hidden under the table anyway, I chose to leave them. Once they're painted over, they're not as noticeable!

Paint or Stain

This project was the perfect opportunity for me to test out my newest toys, the HomeRight Finish Max paint sprayer and the HomeRight spray shelter. HomeRight was generous enough to send me these awesome tools to try out, and they're a total game changer!

The spray shelter sets up like a tent. The first time was a little tricky, but the next time will be a snap! It protected my 2x4 bench from all the falling leaves and bugs that attempt to bombard my projects in the backyard. After spraying on the paint, I closed up the shelter and let it dry.

spray shelter set up in backyard for painting a DIY farmhouse bench

I'll admit that I had to go back over some of the tighter spots of the bench between the legs with a regular paintbrush in order to get even coverage. I probably should have painted it upside down first in order to get into all those awkward angles!

paint sprayer next to painted 2x4 bench

Enjoy your new 2x4 bench!

I just love how versatile this little bench is! You can use cedar or exterior paint to create an outdoor bench...

white 2x4 bench on grass

Or bring it indoors for a small bench at your dining table!

small DIY farmhouse bench at dining table

This project comes together so quickly, you could make two so you don't have to choose! 🙂

close up of white 2x4 bench on grass

I'd love to see your farmhouse bench in its natural habitat. Send me a photo, or tag me on Instagram to show it off!

Check out these other easy woodworking projects!

This post was originally published on July 12, 2016, and was edited on May 22, 2020 to add the free woodworking plans.
