DIY Router Table with Plans

You need to build this DIY router table for your workshop! It features two drawers for storage, and it rolls under the miter saw station to save space!

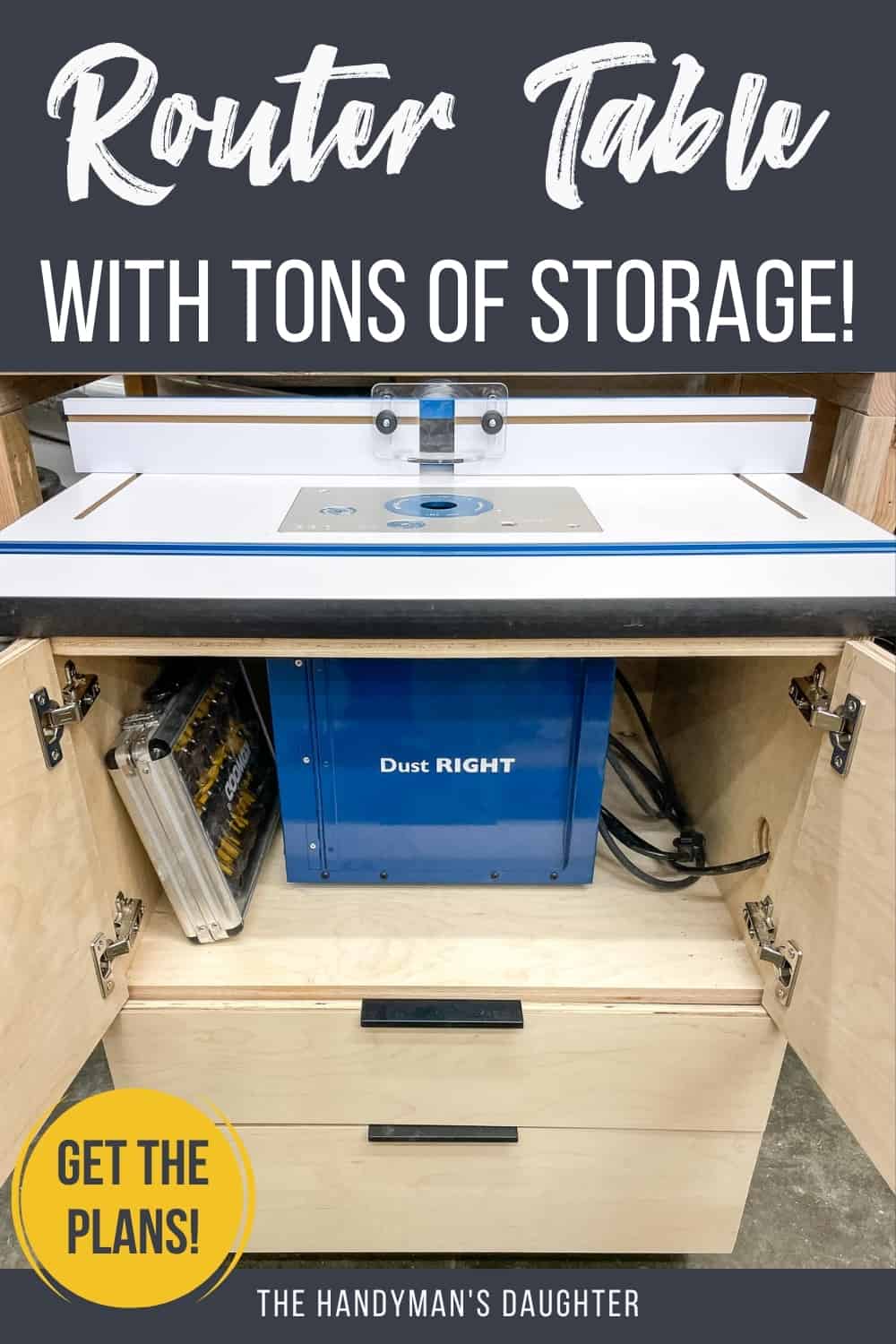

DIY router table with storage (plans)

I've wanted a router table in my workshop for ages, but I thought I didn't have the space. I tried a collapsible one, but it was a pain to set up and it was too small for most of the tasks I wanted to do.

This post contains affiliate links for your convenience. Purchases made through these links may earn me a small commission at no additional cost to you. You can read more about how this site earns money on my disclosures page.

When I built my new miter saw station, I designed it so that a full size router table could roll underneath. Now I can fit the miter saw, router table, planer and benchtop sander all in one small footprint!

miter saw station with router table, planer stand and benchtop sander

Click here to get the woodworking plans for all four of these projects together at a 20% discount!

download box for woodworking plans for miter saw station with router table, planer stand and tool stand with lift

This router table stand is the same height as commercially available options like these, but they're twice the price and don't have any storage underneath. All you need to make my version is a sheet of ¾" plywood, plus some ½" plywood for the drawer boxes.

DIY router table with Rockler top and fence

Materials needed for router table

Tools required

DIY Router Table Instructions

Before you begin, don't forget to download the router table plans by clicking the box below! You'll get all the dimensions, a cut list and plywood cut diagram, and detailed instructions with 3D models of every step of the build!

download box for router table woodworking plans

Assemble the cabinet

All the parts for the router table cabinet were cut from various pieces of plywood leftover from the rest of the miter saw station projects. I bought three sheets at the beginning, and I had JUST enough to finish without having to buy more!

Label all the parts as you cut them and check them off the list, so you don't mix them up. They're all slightly different, but similar enough to cause confusion while you're building!

labeled pieces of plywood for DIY router table

Drill pocket holes along both short ends of the side pieces, then align them with the bottom piece. I like to use right angle positioning squares and clamps to hold these bigger pieces upright while I drive in the pocket hole screws.

Right angle positioning squares and clamps holding router table sides at a 90 degree angle

Then flip the cabinet down to attach the back with more pocket hole screws. I used a longer clamp to hold the sides tight while I drove in the screws. Check for square as you build!

attaching the back of the router table stand to the sides with pocket hole screws

Finally, attach the stretchers across the top. This keeps the open front square, and gives you a place to attach the top to later on.

stretchers across top of router table cabinet

Install the interior shelf

The shelf separates the upper and lower section of the cabinet, and keeps sawdust from the router from getting into the drawers below. I based the placement of my shelf on the Rockler dust bucket I'm planning to install inside.

installing router table cabinet shelf below the dust bucket

Flip the router table cabinet upside down and place the dust bucket inside. It should be sitting on the workbench, not on the stretchers! I used a couple of scraps of plywood to raise up the shelf off the bottom of the dust bucket, then screwed the shelf in place with pocket hole screws.

download box for router table woodworking plans

Install the drawer slides and casters

Now that the shelf is installed, it's easier to figure out where the drawers will go. I installed the bottom set of 20" drawer slides using ¾" plywood as a spacer underneath. Then I cut another scrap of plywood for a spacer between the two sets of slides.

using a spacer to get matching heights on both drawer slides in the router table cabinet

Then I installed the 3" locking casters on the bottom with washers and ¾" screws. Make sure your casters lock securely, so your router table doesn't roll away as you're using it!

locking casters installed on router table bottom

Install the router table dust collection

One of my main goals for building this entire miter saw/router table system was to get better use out my wall mount dust collector. Now all of my tools are within ten feet of the dust collector with blast gates for each one, and I'm noticing way less sawdust around the workshop!

dust collection blast gates

The Rockler dust bucket has two ports on the back. The 2 ½" connection goes to the fence on top, and 4" one goes to the dust collector. I cut holes for both in the back of the cabinet with hole saws. You could also use a jigsaw for this step.

drilling holes for router table dust collection with a hole saw

Once the dust bucket was screwed to the underside of the top, I connected the hoses and pushed them out the holes. Then I screwed the router table top to the cabinet through the stretchers.

dust collection hoses coming out of back of router table

My husband got me the Rockler laminate router table top and router lift for Christmas (lucky me!), so I didn't have to build my own top. If you'd rather save a few bucks and make it yourself, here's a great video on how to do it!

router table cabinet doors and drawers

Since this is just shop furniture, I used ¾" plywood for the cabinet doors and drawer fronts and didn't bother finishing the exposed edges. Cut the two doors to cover the top opening and the surrounding plywood edges.

download box for router table woodworking plans

I installed these inexpensive full overlay cabinet door hinges using the Kreg concealed hinge jig. It's super easy to use, and creates perfect holes every time! I have a full tutorial on how to use a concealed hinge jig here.

drilling concealed hinge holes in router table cabinet doors with a jig

I quickly threw together some drawer boxes using ½" plywood, wood glue and brad nails. No fancy dovetails or dados here! Then I attached them to the drawer slides inside the cabinet.

assembling a drawer box with clamps and brad nails

These overlay drawer front clamps make it really easy to get the perfect alignment! I matched the gap between the cabinet doors, then pulled out the drawer and attached the front from the inside.

overlay drawer clamps holding drawer front in place on router table cabinet

After installing the door and drawer pulls, plus the stop/start button on the side, I could finally call this huge workshop project complete!

DIY router table with cabinet doors and drawers

The cabinet doors open to reveal the dust bucket, a case of router bits, and the power cables. I'm planning to add some hooks to the inside of the doors for my frequently used accessories, like collet wrenches and featherboards.

DIY router table with cabinet doors open to reveal dust bucket and router bit set

The drawers hold all the gadgets and gizmos you need for routing, plus extra storage for other tools around the shop.

DIY router table with drawer pulled out to reveal routing tools and bits

When I'm done using the router table, it rolls back under the workbench side of the miter saw station (with less than an inch to spare!) Just like I planned!

DIY router table rolling under workbench
download box for router table woodworking plans

I've been designing this whole set up for my workshop for months, and I'm so happy to finally be finished! It truly makes me smile every time I walk into the room, and I'm hoping to keep it this neat and clean as much as possible!

miter saw station with router table, planer stand, benchtop sander and lots of storage

If you have a really small workshop, you could fit all these tools into a 12' x 12' square space! All these big shop furniture pieces are on casters, so you can roll them out when you need them, then push them back when you're done! I have woodworking plans or a tutorial for everything you see in this photo.

The only big tools you don't see in the photo are the band saw and drill press on the other side of the room. There's also a long workbench that serves as the table saw outfeed table and assembly area, and a lumber rack for bigger scraps. You can fit a lot into a one car garage!

I hope these workshop projects help you visualize how you can turn even a small shed or corner of the garage into a functional space for woodworking. Don't forget that you can get the bundle of four plans for the entire miter saw station set up at 20% off here!
